Trilogy 9/28

The new micro-aero-abrasive cleaning system put together for the first time the patent HELIX with the dry and wet (H2O) eco-blasting technologies; a triple functionality that assures an extraordinary versatility and an effectiveness never seen before.

The best of IBIX innovation is expressed in a new technology that will allow to reduce drastically the time for cleaning, paint removal, restoration and treatment of surfaces, all with a simple and ecological method, safe for the environment and the operators.

Trilogy represents the state of art in the fields of surface treatment, industrial and special cleaning, restoration and urban cleanliness, allowing with its unique characteristics an unheard of versatility able to provide the best answer in every work context; an unmissable opportunity to expand your own business and the services offered to your customers.

IBIX® H2O Selective Cleaning Systems

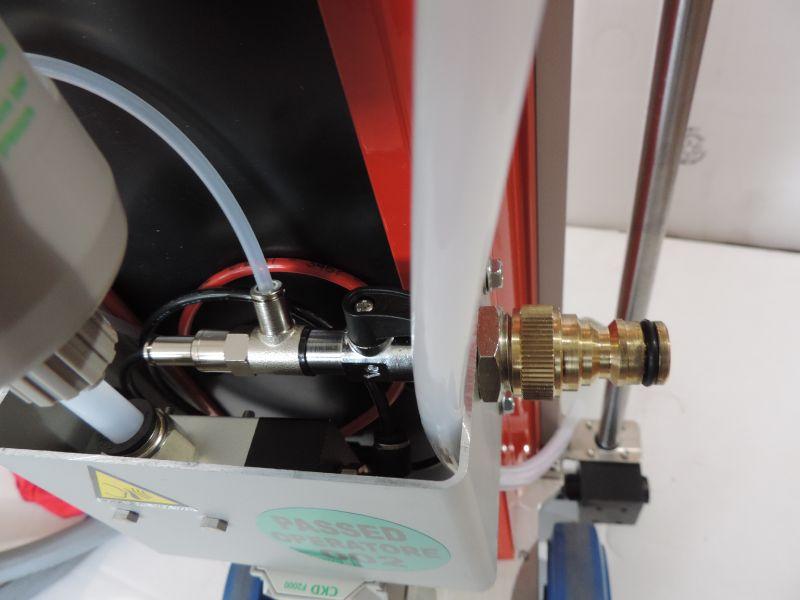

Dual action dry and/or wet technology that allows water spraying by mixing it in output with carbonates or other minerals. The IBIX® H2O systems feature quick lock systems for easy connection to water mains or a water tank.
In conservative restoration works, the system IBIX® H2O allows meeting any cleaning requirements offering high level performances in terms of qualitative and quantitative yield. It further provides top level performance in the field of urban recovery (graffiti cleaning, removal of chewing-gum etc).

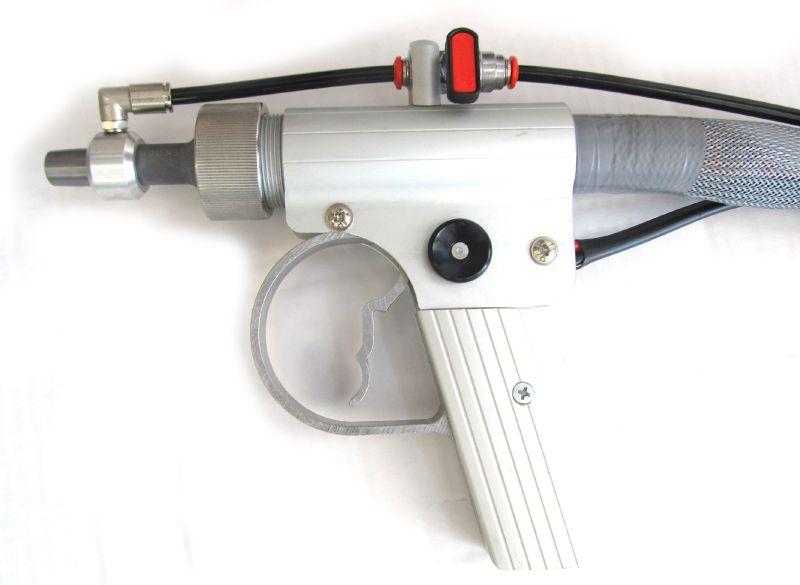

Rotational Vortex HELIX® media cleaning system

A combination of the Venturi effect generated by the special conformation of the outlet cone and the helical rotary movement system considerably reduces the compressed air demand and increases the contact area.
The special wearproof Tungsten Carbide-based steel used allows manufacturing nozzles that stand out for durability and long useful life even when using abrasives of extreme hardness.

Trilogy

Aeropulitrice a doppia funzione (secco/umido) per pulitura ecologica, micro-aero-abrasione, soda blasting.

Doppia pistola

H2O + Sistema brevettato HELIX®

Technical Feautures Trilogy

  • Technical Feautures Nano Trilogy :
  • Pressure adjustable from 0.2 to 7.5 bar (depending on the compressor)
  • Micrometric dosing of the blasting Material
  • Particles can range in size from 38 μm up to 600 μm and have different specific gravity (from Natural Mineral Almandine to Sodium Bicarbonate, Calcium Carbonate, Magnesium Carbonate, glass beads and vegetal media)
  • Recommended compressed air supply: 300 l/min (10.59 CFM)
  • Standard nozzle: internal Ø 3 mm cylindrical with DRY and H 0 guns; internal Ø 2 ® 2 Venturi with HELIX gun
  • Other applicable nozzles: internal Ø 1.5-2-2.5-3 L.115-3.5-4-4.5 mm cylindrical and 2.5-4-4 L.115 mm Venturi with DRY and H O guns, internal Ø. 2-3- 2 4 mm selective and 2-4-6-8 mm Venturi with HELIX gun
  • Blasting medium - air hose with protective sheath: 2.5 m
  • Blasting medium tank capacity: 2 l
  • Max height: 500 mm
  • Max width: 220 mm
  • Max lenght: 270 mm
  • Weight (with empty tank): 10 kg approx
  • Technical Feautures Trilogy 9:
  • Entirely made of aluminum
  • Pressure adjustable from 0.2 to 7.5 bar (depending on the compressor)
  • Micrometric dosing of the blasting Material: Particles can range in size from 38 μm up to 800 μm and have different specific gravity (from Natural Mineral Almandine to Sodium Bicarbonate, Calcium Carbonate, Magnesium Carbonate, glass beads and vegetal media)
  • Recommended compressed air supply: 500 l/min (17.66 CFM)
  • Standard nozzle: internal Ø 3 mm cylindrical with DRY and H 0 guns; internal Ø 3 ® 2 Venturi with HELIX gun
  • Other applicable nozzles: internal Ø 1.5-2-2.5-3 L.115-3.5-4-4.5 mm cylindrical and 2.5-4-4 L.115 mm Venturi with DRY and H O guns, internal Ø. 2-3- 2 4 mm selective and 2-4- 6-8 mm Venturi with HELIX gun
  • Blasting medium - air hose with protective sheath: 6m
  • Blasting medium tank capacity: 9 l
  • Max height: 890 mm
  • Max width: 310 mm
  • Max lenght: 350 mm
  • Weight (with empty tank): 18 Kg approx
  • Technical Feautures Trilogy 28:
  • Entirely made of aluminum
  • Pressure adjustable from 0.2 to 7.5* bar Micrometric dosing of the blasting material
  • Particles can range in size from 38 μm up to 1400 μm and have different specific gravity (from Natural Mineral Almandine to Sodium Bicarbonate, Calcium Carbonate, Magnesium Carbonate, glass beads and vegetal media)
  • Recommended compressed air supply: 1900 l/min (53 CFM)
  • Standard nozzle: internal Ø 5.5 mm cylindrical with DRY and H 0 guns; internal Ø 6 mm 2 Venturi with HELIX gun
  • Other applicable nozzles: internal Ø 1.5-2-2.5-3-3 L.115-3.5-4-4.5-5.5 L.115-7 mm cylindrical and 2.5-4-4 L.115-5-6-6 L.115 mm Venturi with DRY and H O guns; internal Ø 2-3-4 mm selective and 2-3-4-8 mm Venturi with HELIX gun
  • Blasting medium - air hose with protective sheath: 10 m
  • Blasting medium tank capacity: 28 l
  • Max height: 990 mm
  • Max width: 316 mm
  • Max lenght: 426 mm
  • Weight (with empty tank): 30 Kg approx
