Ibix H2O offers two different operating modes: dry or with a nebulized low-pressure water jet mixed with the abrasive;

The mix happens in the nozzle so that the quantity of water used is reduced, along with the cleaning residues and the cost of protecting nearby areas.

The use of water prevents dust to spread in the surroundings and is perfect in urban contexts or similar. The H2O method is versatile and can be used for different purposes such as restoration, urban cleanliness, graffiti removal, industrial cleaning and maintenance.

This technology is particularly effective using bicarbonate of soda as abrasive; the soda blasting is a non-abrasive cleaning ideal for machineries, shiny surfaces, non-porous stones and street furniture.

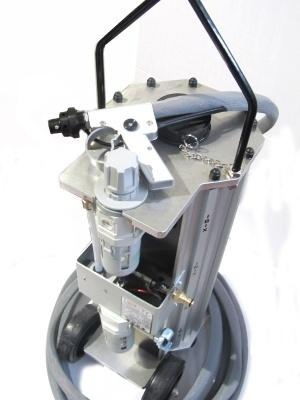

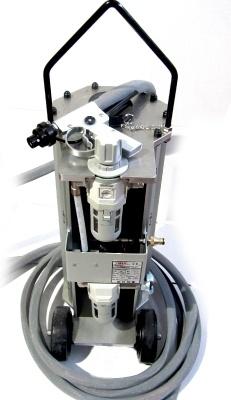

H2O

Sistema di pulitura a doppia funzione. Disponibile nelle varianti IBIX9 - IBIX25 - IBIX40 - IBIX60

H2O Gun

Pistola H2O versatile sia per lavori a secco e/o umido come: pulitura selettiva conservativa di elementi architettonici, rimozione dei graffiti, strutture in inox e molto altro.

Technical Feautures H2O

ibix 9 h2o

  • Technical Feautures H2O 9:
  • Pressure adjustable from 0.2 to 7 bars (depending on the compressor)
  • Micrometric dosing of the blasting material
  • Particles can range in size from 38μm up to 800 μm and have different specific gravity (from Natural Mineral Almandine to Sodium Bicarbonate, Calcium Carbonate, Magnesium Carbonate, glass beads and vegetal media)
  • Recommended compressed air supply: 500 lt/min
  • Standard nozzle: internal Ø 3 mm cylindrical
  • Other applicable nozzles: internal Ø 1,5-2-2,5- 1,5-2-2,5-3,5-4-4,5 mm cylindrical; 2,5-4 mm Venturi
  • Blasting medium - air hose with protective sheath: 6 m
  • Blasting medium tank capacity: 9 l
  • Max height: 850 mm
  • Max width: 430 mm
  • Weight (with empty tank): 12 kg

ibix 25 h2o

  • Technical Feautures H2O 25:
  • Pressure adjustable from 0.2 to 8,5 bars (depending on the compressor)
  • Micrometric dosing of the blasting material
  • Particles can range in size from 38μm up to 1800 μm and have different specific gravity (from Natural Mineral Almandine to Sodium Bicarbonate, Calcium Carbonate, Magnesium Carbonate, glass beads and vegetal media)
  • Recommended compressed air supply: 1500 l/min
  • Standard nozzle: internal Ø 5,5 mm cylindrical
  • Other applicable nozzles: internal Ø 1,5-2-2,5-3-3,5-4-4,5-7 mm cylindrical; 2,5-4-5-6 mm Venturi
  • Blasting medium - air hose with protective sheath: 10 m
  • Blasting medium tank capacity: 25 l
  • Max height: 940 mm
  • Max width: 450 mm
  • Weight (with empty tank): 28 kg

ibix 40 h2o

  • Technical Feautures H2O 40:
  • Pressure adjustable from 0.2 to 8,5 bars (depending on the compressor)
  • Micrometric dosing of the blasting material
  • Particles can range in size from 38μm up to 1800 μm and have different specific gravity (from Natural Mineral Almandine to Sodium Bicarbonate, Calcium Carbonate, Magnesium Carbonate, glass beads and vegetal media)
  • Recommended compressed air supply: 5000 lt/min
  • Standard nozzle: internal Ø 10 mm cylindrical
  • Other applicable nozzles: internal Ø 5,5-7mmcylindrical; 5-6 mm Venturi
  • Blasting medium - air hose with protective sheath: 10 m
  • Blasting medium tank capacity: 40 lt
  • Max height: 980 mm
  • Max width: 520 mm
  • Weight (with empty tank): 48 kg

ibix 60 h2o

  • Technical Feautures H2O 60:
  • Pressure adjustable from 0.2 to 8,5 bars (depending on the compressor)
  • Micrometric dosing of the blasting material
  • Particles can range in size from 38μm up to 1800 μm and have different specific gravity (from Natural Mineral Almandine to Sodium Bicarbonate, Calcium Carbonate, Magnesium Carbonate, glass beads and vegetal media)
  • Recommended compressed air supply: 5000 l/min
  • Standard nozzle: internal Ø 10 mm cylindrical
  • Other applicable nozzles: internal Ø 5,5-7mmcylindrical; 5-6 mm Venturi
  • Blasting medium - air hose with protective sheath: 10 m
  • Blasting medium tank capacity: 60 l
  • Max height: 1320 mm
  • Max width: 580 mm/li>
  • Weight (with empty tank): 52 kg
